Star Series

Round Star Dome ZH400

4 m transparent dome house for restaurant private dining and glamping. 12.5 m², rated 8-10 persons, 30 sets per 40HQ.

Φ4 m - 12.5 m² rated for 8-10 persons
The size behind 18 units on a restaurant terrace
30 sets per 40HQ, 3 workers in 3-5 hours

Muted · Autoplay

Installation & real-scene video

Technical Specifications

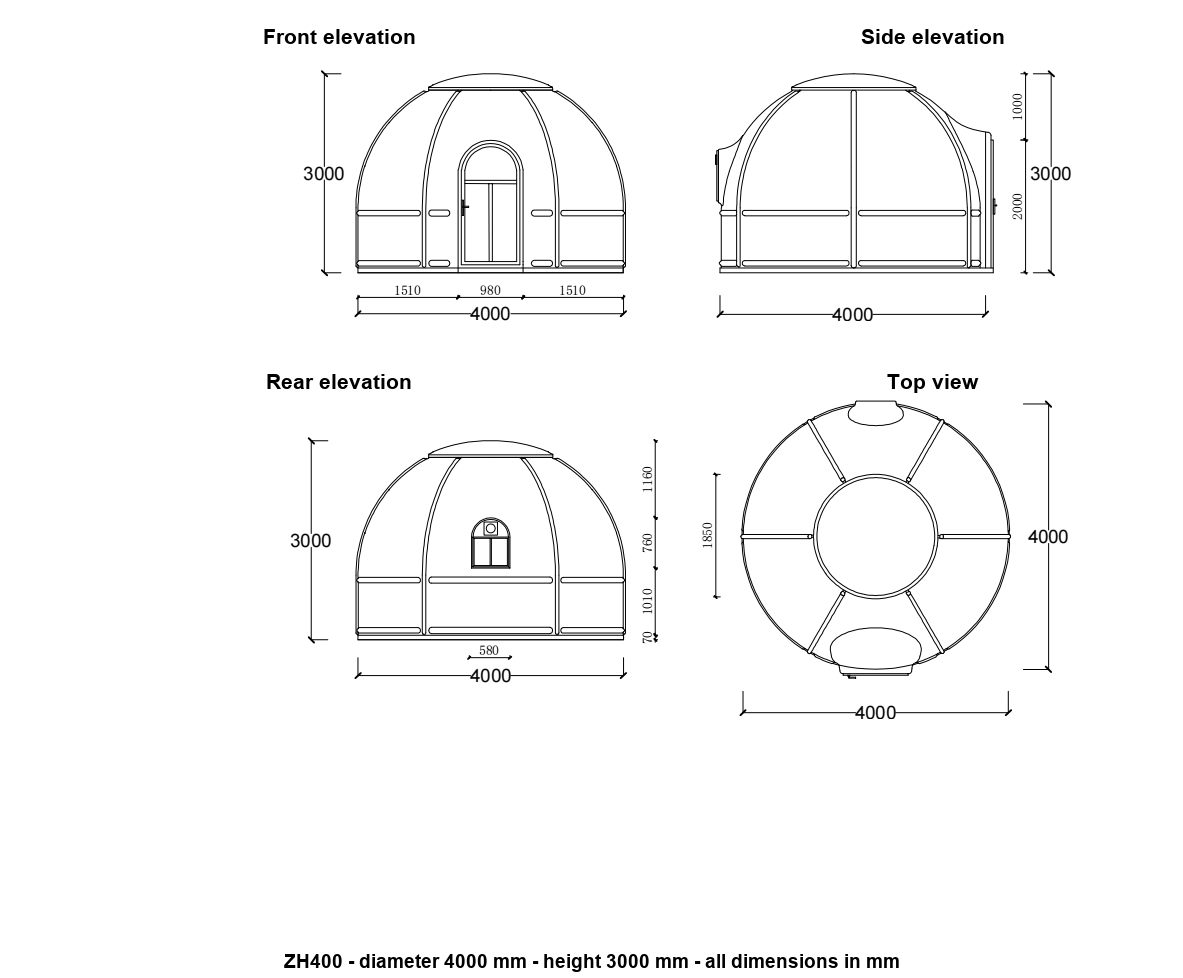

Size	Φ4.0 m × H3 m
Floor Area	12.5 m²
Door Height	H2 m
Frame Material	6063-T5 aluminum, powder-coated
PC Panel	3 mm polycarbonate, UV-protected
Wind / Snow Load	120 km/h / 45 kg/m²
Configuration	One Door, One Window, One Curtain, One Exhaust
Accommodates	8–10 persons
Net Weight	≈ 220 kg
Packing · 1 set	7.74 m³ (3.2 × 2.2 × 1.1 m), 460 kg
Packing · 3 sets	10.37 m³ (3.25 × 2.2 × 1.45 m), 950 kg
40HQ Loading	30 sets
Note	Please confirm the final quantity with us
Assembly Time	3 workers × 3–5 hours
Warranty	10 years frame · 20 years PC panel (no yellowing)

What the 4 m Star Dome Is Best For

12.5 m² and a 3 m interior – the smallest round dome in the range that behaves like a room rather than a seat, and our best-selling size. Eighteen of these units were delivered for a hot-pot restaurant terrace in China.

A restaurant private dining room

Rated for 8-10 persons, the 12.5 m² floor takes a dining table with circulation space around it. One door, one window, a curtain set and an exhaust outlet are standard, with composite flooring, blackout curtains and motorised overhead curtains on the options list. One unit is a private room; several in a row read as one terrace.

A two-person glamping room

12.5 m² fits a double bed with a luggage bench and a seating corner. At 3 m high the interior never feels like a tent, and the 3 mm UV-protected PC panels keep the view open in every direction.

Buying by container space

The 4 m unit loads 30 sets per 40HQ and assembles with 3 workers in 3-5 hours, so each unit takes about half the container space of the 6.2 m flagship, which loads 16. For a 20-30 unit camp that ratio usually decides the size.

Compare with the 3.5 m Star Dome if floor area is the constraint, or the 5.1 m Star Dome if you need 16-18 persons per room. For how a round PC dome differs from a framed geodesic build, see Geodesic vs Round Dome.
