Round Star Dome ZH350
Four-season 3.5 m glamping dome tent for camps and cold-climate sites. 9.6 m², 6-8 persons, 45 kg/m² snow load, 30 sets per 40HQ.
- Φ3.5 m - 9.6 m² rated for 6-8 persons
- 6 units delivered to a winter camp in Canada
- 120 km/h wind / 45 kg/m² snow load
Muted · Autoplay
Installation & real-scene video
Technical Specifications
| Size | Φ3.5 m × H2.8 m |
|---|---|
| Floor Area | 9.6 m² |
| Door Height | H2 m |
| Frame Material | 6063-T5 aluminum, powder-coated |
| PC Panel | 3 mm polycarbonate, UV-protected |
| Wind / Snow Load | 120 km/h / 45 kg/m² |
| Configuration | One Door, One Window, One Curtain, One Exhaust |
| Accommodates | 6–8 persons |
| Net Weight | ≈ 160 kg |
| Packing · 1 set | 6.47 m³ (2.8 × 2.2 × 1.05 m), 380 kg |
| Packing · 3 sets | 8.46 m³ (2.85 × 2.2 × 1.35 m), 740 kg |
| 40HQ Loading | 30 sets |
| Note | Please confirm the final quantity with us |
| Assembly Time | 2–3 workers × 3 hours |
| Warranty | 10 years frame · 20 years PC panel (no yellowing) |
What the 3.5 m Star Dome Is Best For
9.6 m² with a 2.8 m interior – the size that turns a dome from a tent into a room. Six of these units were delivered to a camp in northern Canada, where the 45 kg/m² snow load rating does the real work.
A four-season glamping unit
9.6 m² holds a double bed with a luggage bench and a seating corner, or a bed with the composite flooring kit and an air-conditioner base. The 6063-T5 aluminium frame and 3 mm UV-protected PC panels carry the same 120 km/h wind and 45 kg/m² snow rating as the larger sizes.
Cold-climate and snow-load sites
The delivered Canadian units run through winter at 45 kg/m². The frame is warranted for 10 years and the panels for 20 years of non-yellowing; thicker PC panels (3.5-4.5 mm) and motorised overhead curtains are on the options list.
A small cafe or family dining room
Rated for 6-8 persons, the room takes a dining table for six with circulation space. Two to three workers assemble it in about three hours, and 30 sets load per 40HQ.
Sizing up: the 4 m Star Dome is rated 8-10 persons with a full dining table, and the 2.7 m Star Dome covers single or couple units at 40 sets per 40HQ. Full comparison in Choosing the Right Dome Size.

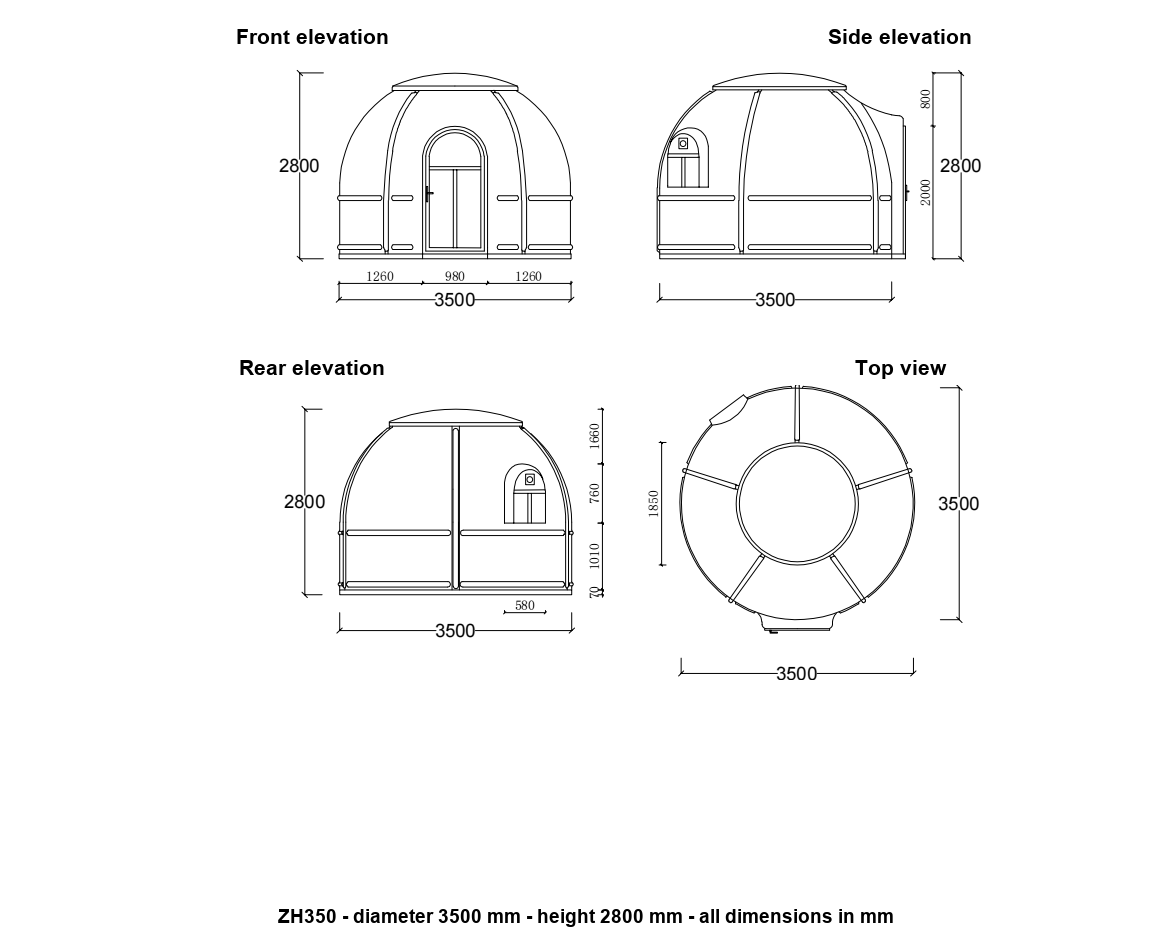

Dimensions & Elevation
Front, side, rear and plan views. All dimensions in mm.
Quality Comparison
How this unit is built versus a typical competing product.
| Our Factory | Other Manufacturer |
|---|---|
| Thicker aluminum door and window frames | Thin aluminum door frame |
| 2 hinges at the top of the aluminum door | Only 1 hinge at the top of the aluminum door |
| No gaps at the top of the security mesh screen - windproof and rainproof | Gaps at the top of the security mesh screen - rainwater can blow in |
| Multiple rollers at the bottom of the aluminum door - smooth sliding | No rollers at the bottom of the aluminum door - difficult to slide |
| No gap at the bottom when the door is closed - tight seal, snug fit | Bottom of the aluminum door does not close tightly - prone to water leakage |
| Screen door with lock - one-touch locking, safer | Screen door without lock - unsafe |
| Screen door with raised-sill design - good drainage | Flat-bottom screen door - poor waterproofing |
| Narrow gap at the top of the door - rainwater cannot blow in | Large door gaps - prone to water leakage |
| Screws driven directly into the door frame with dust caps - safe and neat | Visible screws inside the door frame |
| Solid base aluminum - 2.4 kg per profile | Thin, lightweight base aluminum - only 1.95 kg per profile |
| Flush base threshold - no tripping | Uneven threshold - unattractive and a tripping hazard |
| Framed windows - attractive and safe; larger: 72 cm wide x 107 cm high | Frameless windows - small: 55 cm wide x 48.5 cm high |
| Drainage outlets at the bottom of the window frame - no backflow on rainy days | No drainage holes - risk of water backflow on rainy days |
| Screen window with lock - one-touch open/close | Screen window without lock - unsafe |
| Transparent heat-insulating grey - sun-shading, heat-insulating, no glare | Transparent panels cause a dizzying glare |
| Heat-insulating grey PC panel - crystal clear | PC panels with speckles |
| Double-sided protective film - scratch-resistant | Single-sided protective film - easily scratched |
| Thick panels - stackable | Thin panels - aluminum deforms when packed and stacked |
| Thick top cover - no sagging | Thin top cover - the soft film wobbles when pulled down |
| Thicker wiring with flame-retardant material | Too-thin wiring - potential safety hazard |
| Dust-proof gasket on the interior base aluminum - dust-proof, wiring concealed | No dust-proof gasket on the interior base aluminum - hard to clean, safety risk |
| Side panels fixed with thermal-expansion screws - waterproof and neat | Unsightly side-panel fixing screws - not waterproof |
| Longer side LED strip - more attractive | Side LED strip too short |
| Thick fixing-pin aluminum - strong wind resistance | Thin fixing-pin aluminum - weak and not wind-resistant |
| Built-in leakage circuit breaker (RCD) - easy wiring | No leakage circuit breaker |
| Equipped with transparent wire duct | No wire duct - messy wiring |
Optional Configurations
Tick what you need and we will include it in your quotation.
Best For
Related Projects
See this model installed at real sites.
CN
China
Dining Under the Stars: How Modular Bubble Dome House Revitalize Haidilao Hot‑Pot Restaurant Experience
A Haidilao hot-pot terrace in China: 18 round 4 m domes plus one 4 x 5.9 m oval turning an unused mall terrace into private dining booths.
18 × Round Dome 4m 1 x Oval dome 4x5.9m
View Project
CN
China
Dome Dining Plaza
Transparent PC domes turned into private dining rooms at a commercial plaza in Foshan, China, with a long oval dome for group bookings.
Round Dome dining pods + Oval Dome dining hall
View ProjectMore in Star Series
Compare models within the same series.
Ready to quote this model?
Request a quotation or grab the catalog with full specs, packaging and 40HQ loading data.
