Round Star Dome ZH270
Small 2.7 m transparent dome house kit for gardens, cafe pods and first glamping units. 5.7 m², 2-4 persons, 40 sets per 40HQ.
- Φ2.7 m - smallest and lightest at 135 kg
- 40 sets per 40HQ - highest density in the range
- 2 workers assemble it in about 2 hours
Muted · Autoplay
Installation & real-scene video
Technical Specifications
| Size | Φ2.7 m × H2.7 m |
|---|---|
| Floor Area | 5.7 m² |
| Door Height | H2 m |
| Frame Material | 6063-T5 aluminum, powder-coated |
| PC Panel | 3 mm polycarbonate, UV-protected |
| Wind / Snow Load | 120 km/h / 45 kg/m² |
| Configuration | One Door, One Window, One Curtain, One Exhaust |
| Accommodates | 2–4 persons |
| Net Weight | ≈ 135 kg |
| Packing · 1 set | 5.5 m³ (2.5 × 2.2 × 1.0 m), 320 kg |
| Packing · 3 sets | 7.15 m³ (2.5 × 2.2 × 1.3 m), 630 kg |
| 40HQ Loading | 40 sets |
| Note | Please confirm the final quantity with us |
| Assembly Time | 2 workers × 2 hours |
| Warranty | 10 years frame · 20 years PC panel (no yellowing) |
What the 2.7 m Star Dome Is Best For
At 5.7 m² and 135 kg, the 2.7 m Star Dome is the smallest round unit we build and the cheapest to move: 40 sets load into a single 40HQ, the highest density of any size in the range.
A garden room, tea room or small studio
Rated for 2-4 persons, 5.7 m² is a reading corner, a tea room or a small studio. One door, one window, a curtain set and one exhaust outlet are in the standard spec, with composite flooring, blackout curtains and an air-conditioner base on the options list.
A cafe, kiosk or lobby pod
Buyers often order these in multiples for street-side or hotel-lobby pods, where a full 4 m room is more floor area than the pitch needs. The aluminium frame carries a 10-year warranty and the 3 mm UV-protected PC panels 20 years of non-yellowing.
A first glamping unit
Where a site is testing demand before committing to a full camp, the 2.7 m works as a single or couple unit, and it carries the same 120 km/h wind and 45 kg/m² snow rating as every other size.
Sizing up: the 3.5 m Star Dome adds 9.6 m² for 6-8 persons, and the 4 m Star Dome takes a full dining table. All five sizes are compared in Choosing the Right Dome Size.

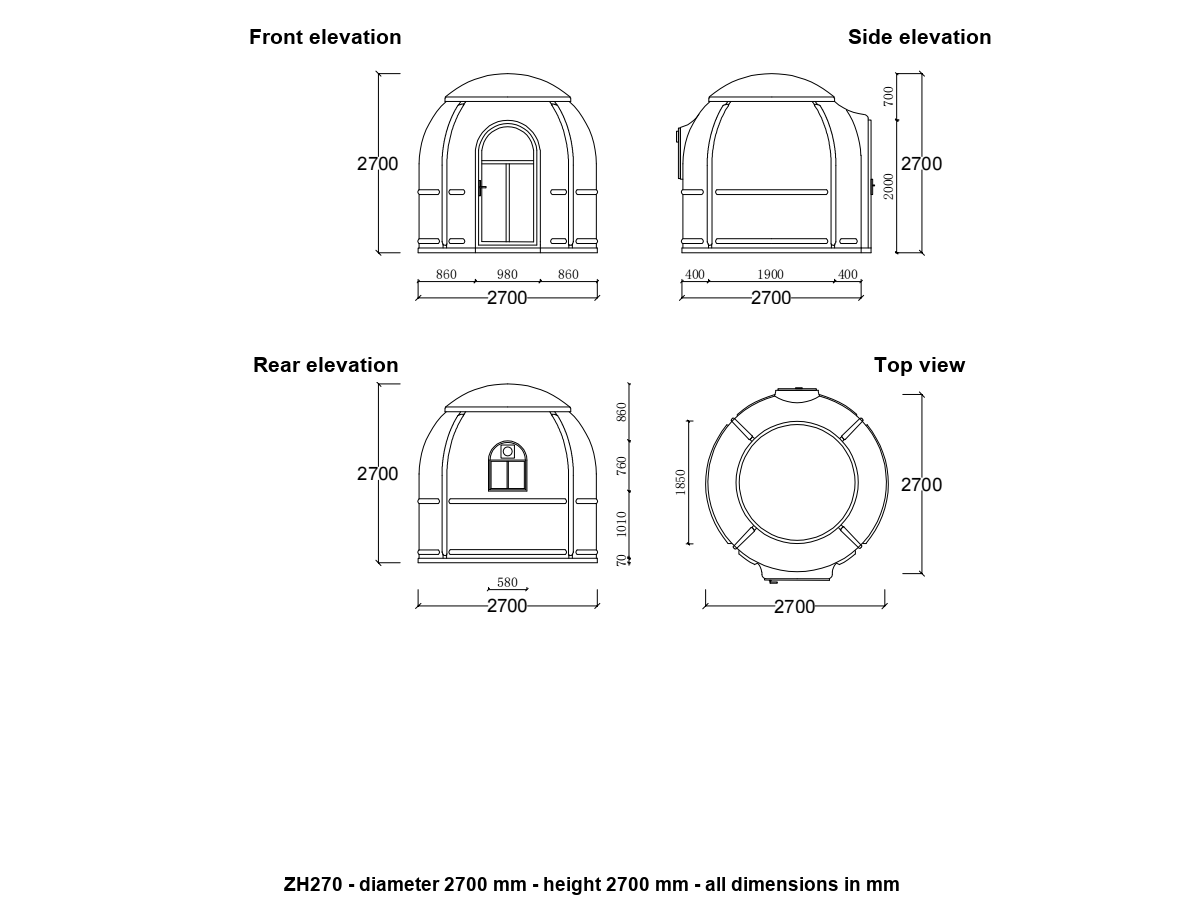

Dimensions & Elevation
Front, side, rear and plan views. All dimensions in mm.
Optional Configurations
Tick what you need and we will include it in your quotation.
Best For
